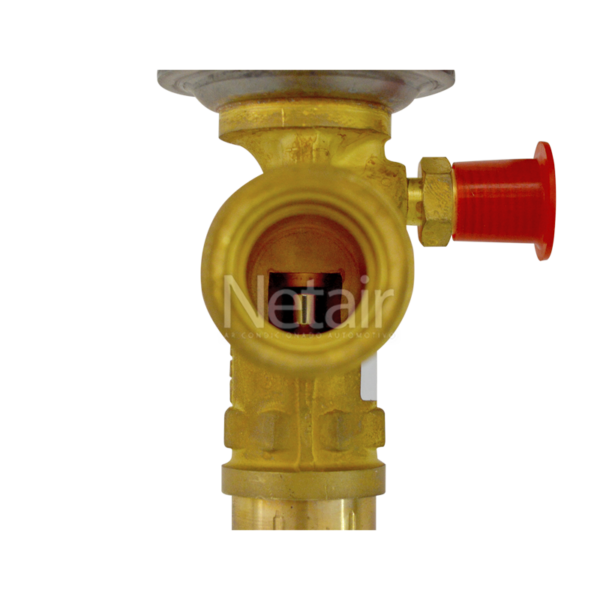

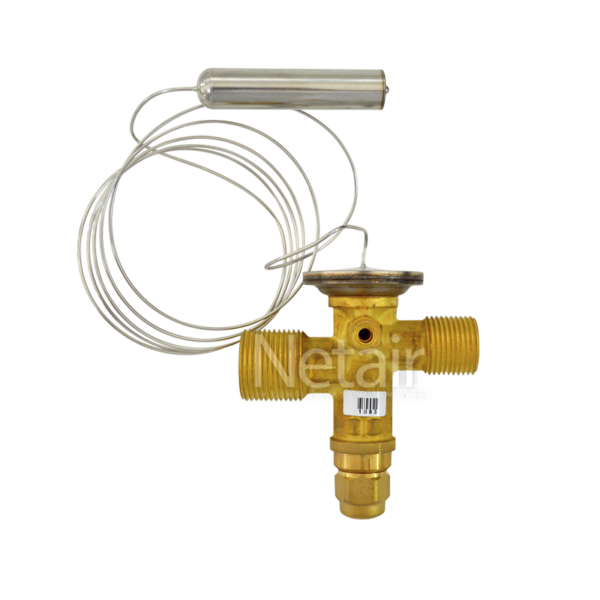

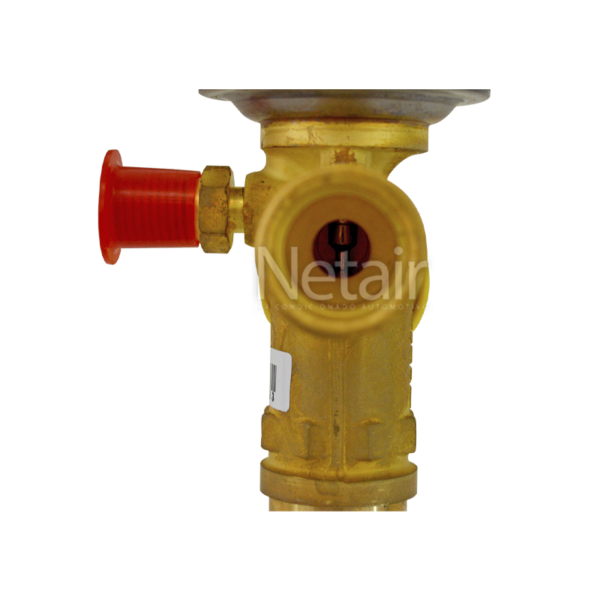

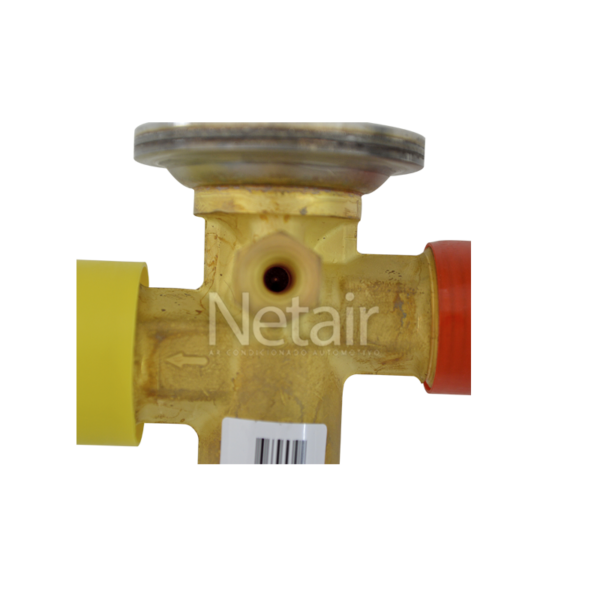

Valvula expansao Danfoss refrigeracao ar condicionado 7tr |
TYPE CODE TGEN
WEIGHT 0.432 Kg
APPROVAL C UL US LISTED, EAC, LLC CDC TYSK
BALANCED PORT Yes
BODY MAT. BRASS
MAX. BULB TEMPERATURE 150 °C
MAX. BULB TEMP. [ºF] 302 °F
CAP. TUBE 59,0 in
CAP. TUBE 1.500 mm
CONN. SIZE 5/8 in x 3/4 in x 1/4 in
CONN. MAT. COPPER
DIRECTION Straightway
EAN NO. 5702428143189
ELEMENT TEMPERATURE MAX. 110 °C
ELEMENT TEMPERATURE MAX. 230 °F
EQUAL. CONN. TYPE MIO
FLOW Bi-flow
FLOW DIR. INDICATOR Embossed 1-way arrow
IDENTICAL PROD. 067N7023
INLET TYPE MIO
MWP 46,0 bar
MWP 667 psig
MOP POINT MOP 55 / 15 °C
MOP POINT 60 °F
ORIFICE CAPACITY 24,00 kW
ORIFICE CAPACITY 7,00 TR
